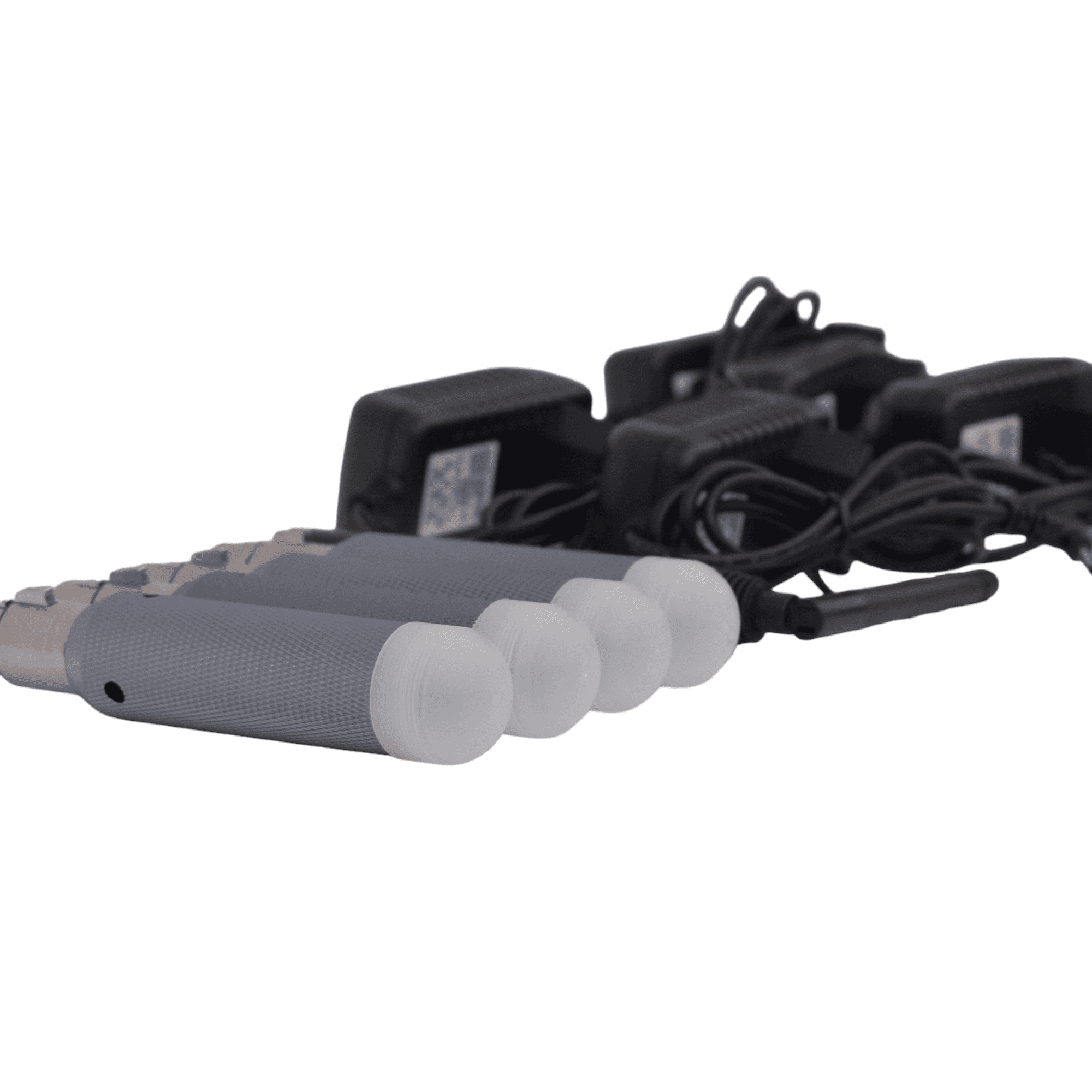

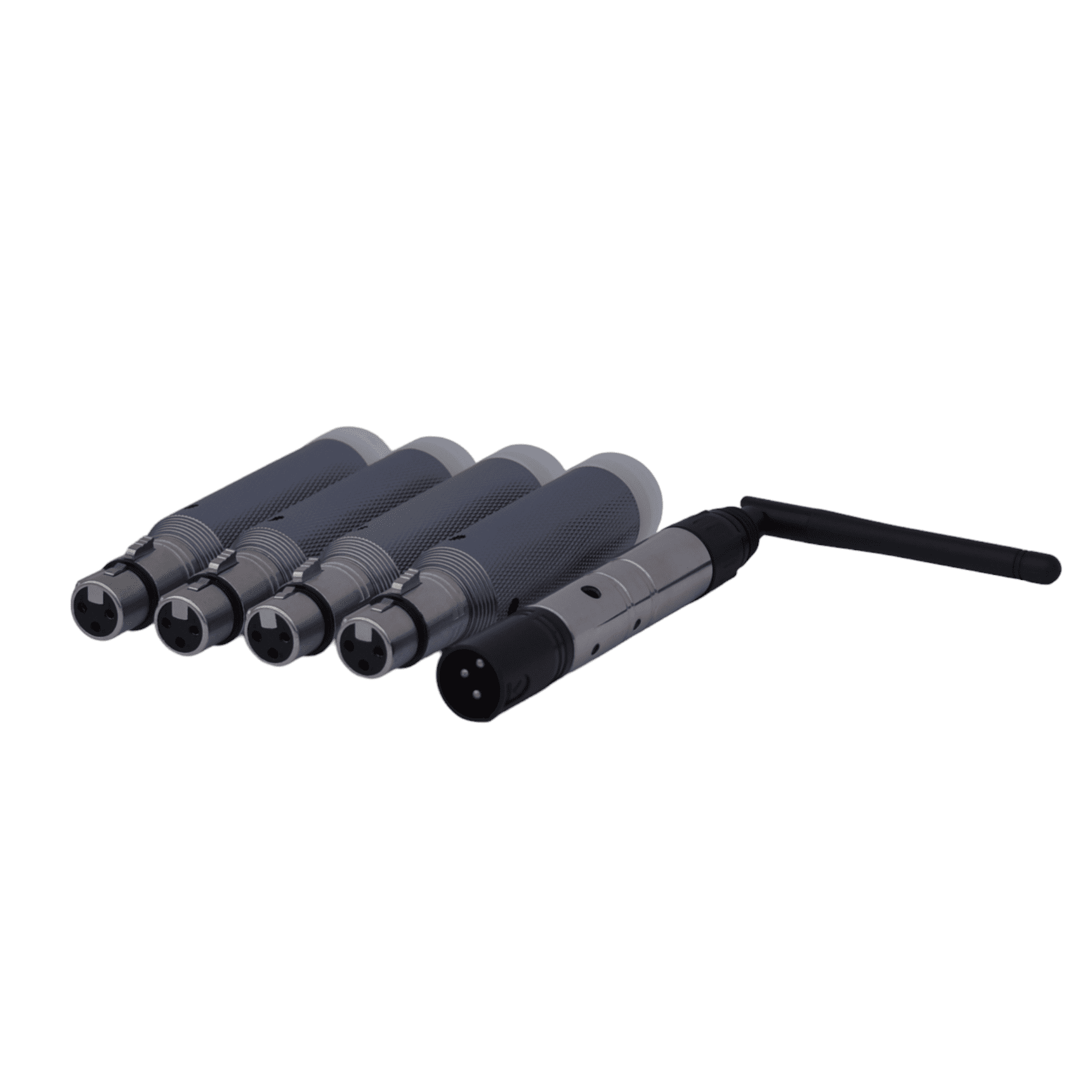

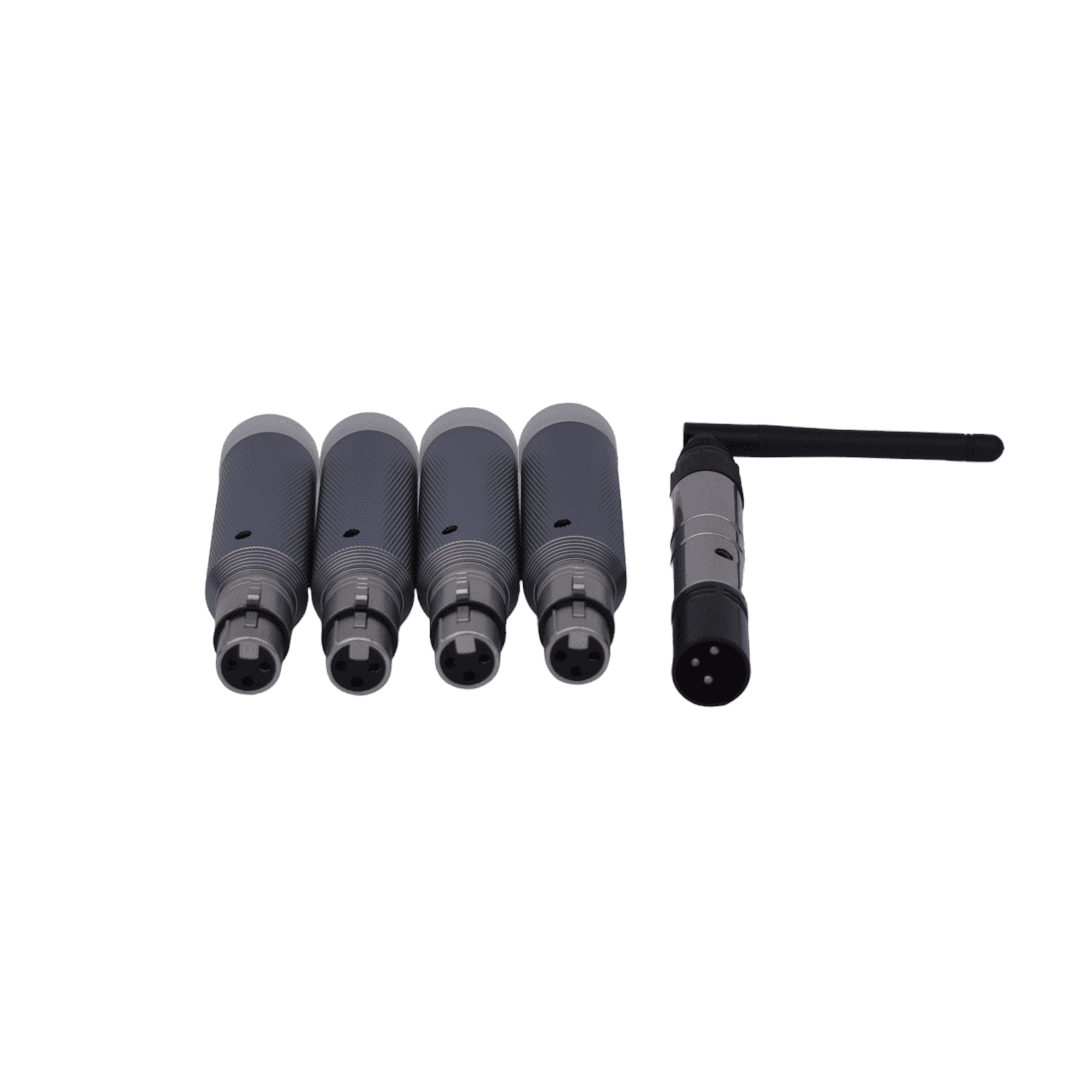

The Miner Wireless DMX 2.4GHz Antenna Kit — with 1 mains-powered transmitter and 4 battery-powered receivers — is the ideal solution for transmitting DMX signals without cables over more than 400 metres, for a maximum of 512 channels simultaneously.
Designed for professional applications in scenic lighting, it enables stable and reliable control of fixtures, moving heads, LED bars, and light effects.
The transmitter, connected to the DMX console or lighting controller, sends the signal wirelessly to the receivers, which can be positioned directly on lighting devices.
The built-in rechargeable battery receivers guarantee maximum installation freedom, fast setup, and a drastic reduction in cabling, making the system perfect for live events, DJ sets, concerts, theatres, and professional service companies.
The transmission is stable, low-latency, and interference-resistant, ensuring precise and synchronised management of the light show.

Technical Specifications:

– Type: Wireless DMX kit

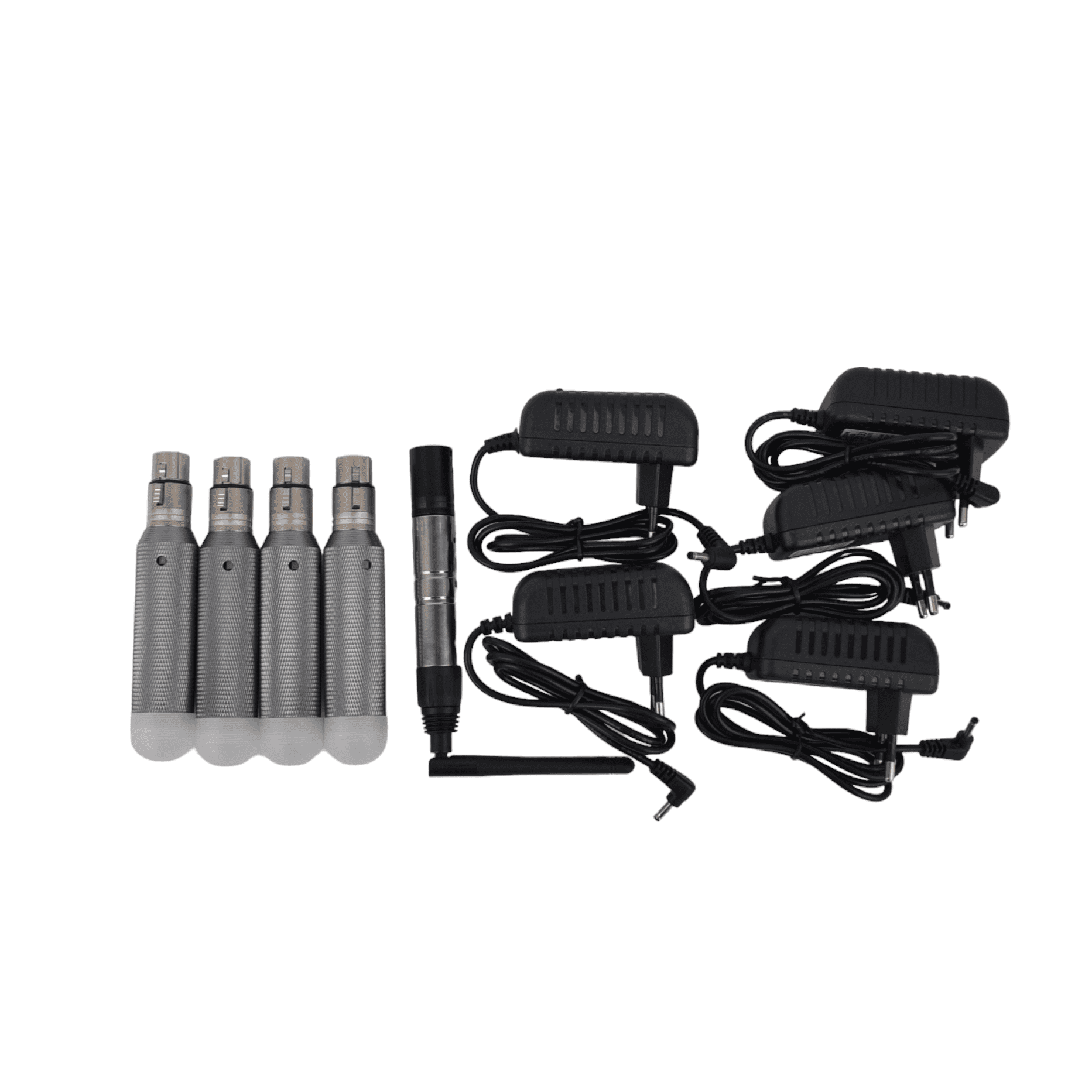

– Kit contents: 1 × mains-powered DMX transmitter, 4 × DMX receivers with rechargeable battery
– Signal: DMX512 wireless
– Transmitter power supply: AC 110–240V, 50–60Hz
– Consumption: 1W
– Number of channels: 512
– Groups: 7 settable ID code groups
– CPU: 32-bit ARM Core
– Signal interface: RS485
– Range: 400m
– Receiver power: integrated rechargeable battery
– Charging time: 2h
– Battery life: 12h
– Frequency: 2.4GHz wireless DMX512
– Compatibility: LED fixtures, moving heads, bars, DMX light effects
– Applications: DJ sets, concerts, live events, theatre, professional installations
– Installation: fast and cable-free
– Signal stability: high reliability and low latency
– Weight: 0.1 kg
– Dimensions: 20×100×70 mm
